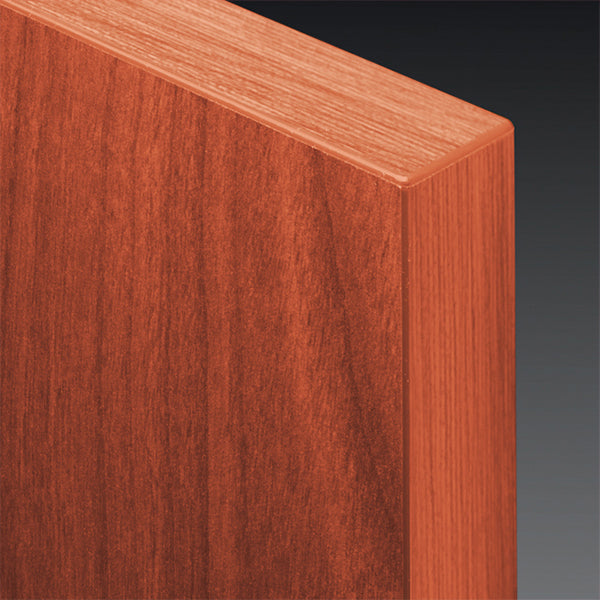

ASI’s exclusive Moisture Guard Edge Banding fuses with the substrate creating a seamless beveled profile that eliminates any unsightly black lines that appear in standard Plastic Laminate.

ASTM tests on Moisture Guard Edge Banding confirms 3X greater durability with increased resistance to moisture and humidity than standard Plastic Laminate. Available in 48 colors/patterns and our Easy Stall Shoe speeds up the installation process.

Our Plastic Laminate with Moisture Guard Edge Banding is now backed with an industry leading exclusive five-year warranty.

Options

• Stainless Steel Hardware
• Continuous Anodized Aluminum and Stainless Steel Brackets
• Continuous Piano Hinges and Steel Core Pilasters

Styles

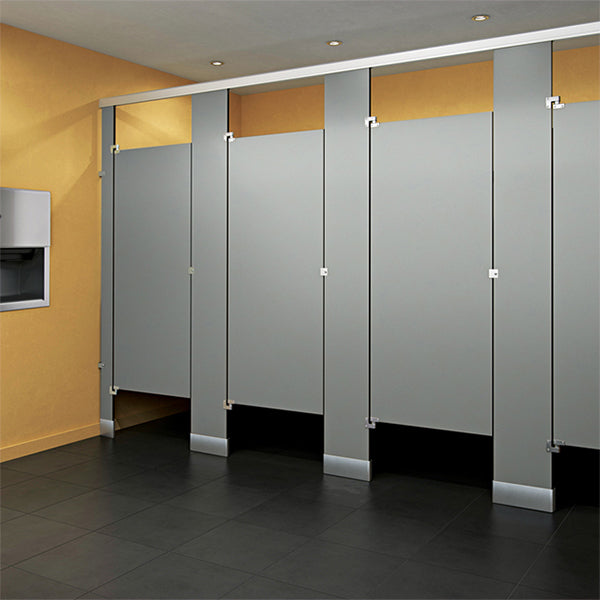

This economical and sturdy mounting style installs just about anywhere. An anodized aluminum anti-grip head rail secures partitions firmly to the walls.

Simplified construction permits ease of installation anywhere. For concrete floors only: 2" minimum penetration into floor required.

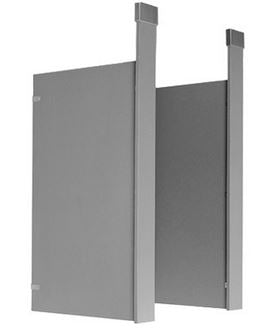

When used together with wall-hung fixtures, the entire floor is accessible for efficient cleaning. Structural steel ceiling supports are necessary to assure proper installation.

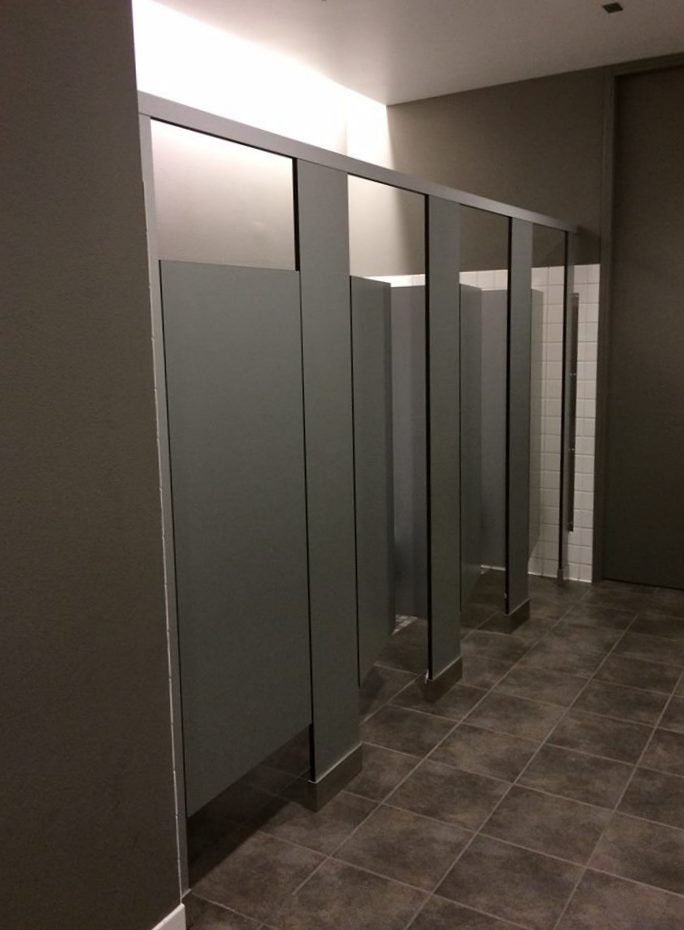

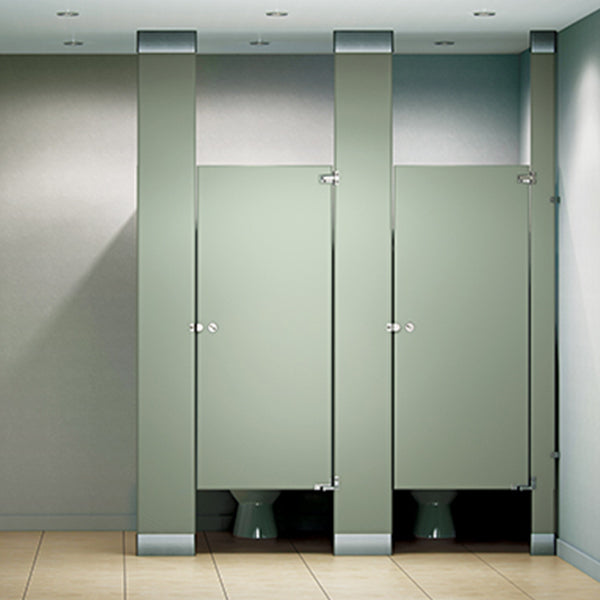

This mounting style is extremely stable and durable as pilasters are anchored into both the concrete floor and the structural ceiling support.

Hardware Options

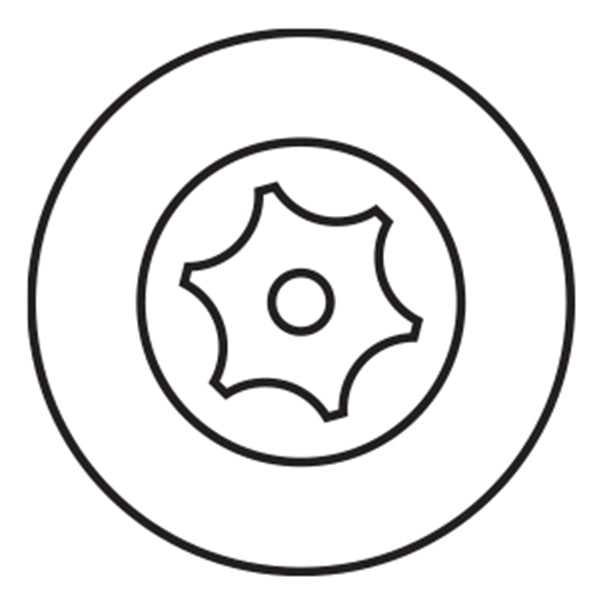

Special driver installs fasteners which virtually eliminates unauthorized removal and ensures easy installation.

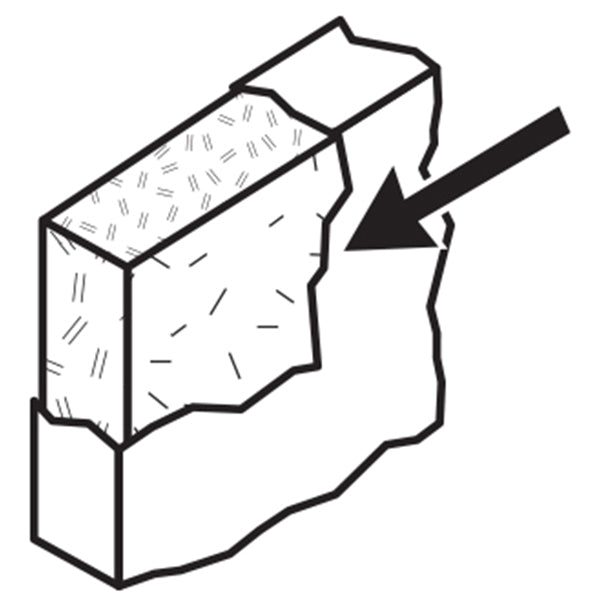

Particle board core is 45# density to resist warping and ensure a smooth surface.

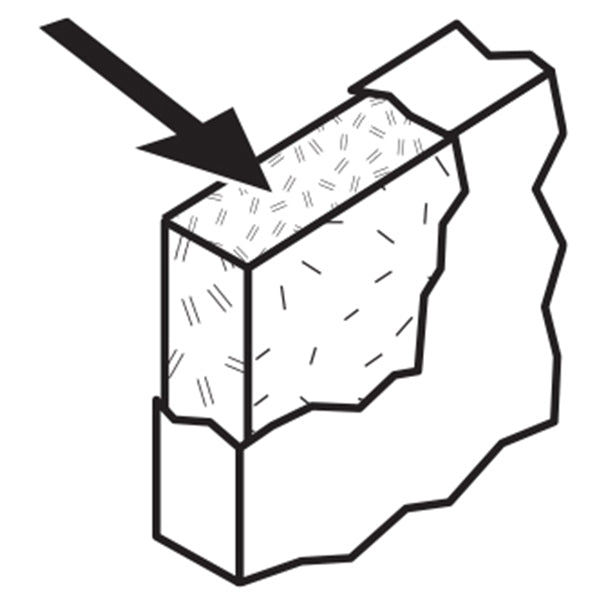

The 0.050″ thickness meets the most demanding partition specification.

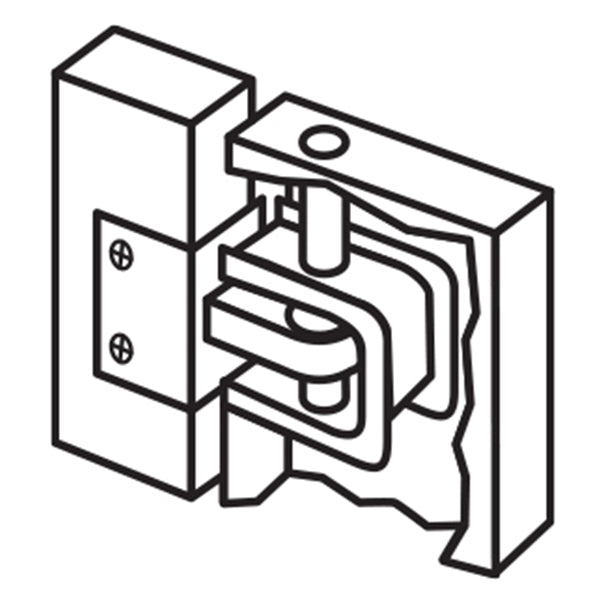

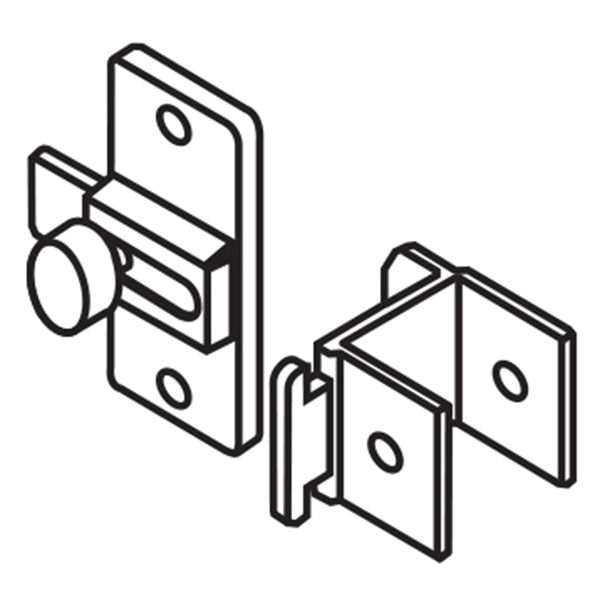

Meets ADA requirements. Slotted keeper coupled with gravity hinges allows access in an emergency.

Wrap-around mounting and through bolting for vandal resistance.

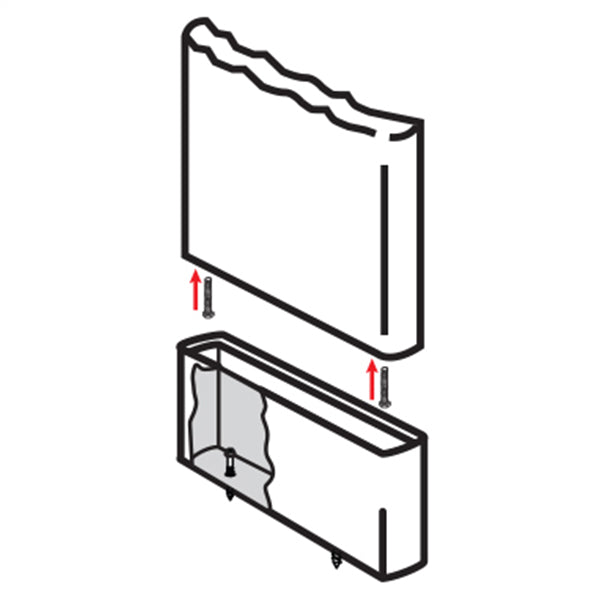

• For floor anchored overhead braced
• Easily adjusted leveling bolt
• True concrete anchor screws designed for lasting holding power
• Anchor rated at 2770 lbs. pullout strength
• Fabricated of type 304 stainless steel
